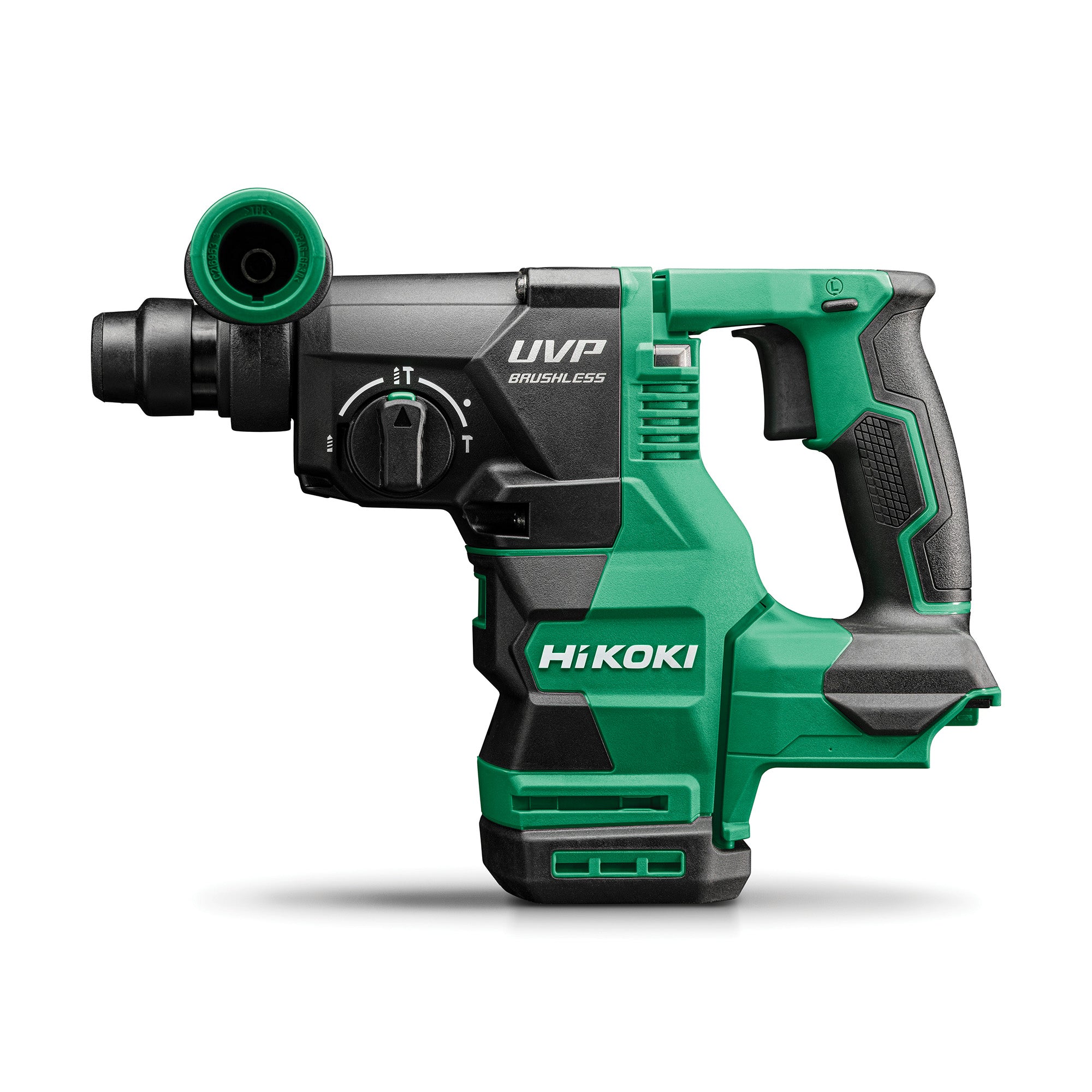

HiKOKI DH3628DAW2Z 36V Cordless Rotary Hammer, Quick release, 3.2J – Body Only

Description

DH3628DAW2Z DH3628DAW2Z 36V Cordless Rotary Hammer, Quick release, 3.2J – Body Only

36 V Brushless 3-mode 3.2 J SDS-Plus rotary hammer with User Vibration Protection (UVP) for drilling into concrete up to 28 mm

Features and Benefits:

• Three modes: rotary hammer, drill only or hammer only with selectable chisel position for optimum versatility
  Ergonomic soft grip handle for optimum control and operator comfort
  Reactive Force Control (RFC) stops the motor when the tool bit is suddenly overburdened to reduce twisting of the main unit and prevent potential injury
  User Vibration Protection (UVP): designed to minimize vibration levels in all circumstances and to incraese operator comfort
  Low vibration handle (LVH) for optimal work comfort and grip
  Compatible with Cyclon Dust Extraction Unit with HEPA filter to keep your working environment as safe and clean as possible
  LED LEVEL indicates if tool is held straight to achieve precisely drilled holes.
  Auto-stop function: record and store drilling time to easily and consistenly drill multiple holes with the same depth
  Soft-start control for comfortable drilling without slipping
  MULTI VOLT battery technology: AC power, DC freedom
  Brushless motor for high power, less wear and a long service life

Technical Specifications:

No Load Speed
0 – 950 /min
Full Load Impact Rate
4 300 – 0 /min
Impact Energy (EPTA 5.0)
3,2 J
Capacity: Concrete Drill Bit (with Dust extractor)
4,3 mm – 20 mm
Capacity: Concrete Drill Bit
3,4 – 28 mm
Capacity: Mild Steel (without Dust extractor)
13 mm
Capacity: Wood
32 mm
Concrete Core Bit
25 – 50 mm
UVP (User Vibration Protection) System
Yes
Low Vibration Handle
Yes
Double-Layer Switch Handle
Yes
Double-Layer Side Handle
Yes
One-Push Action for Quick Bit Mounting
Yes
Constant Speed Control
Yes
Auto Stop Function
Yes
Normal / Reverse Mode Change
Yes
Reactive Force Control Function
Yes
Dust Extractor System Availability
Yes
Batteries Compatible
BSL36A18, BSL36A18X, BSL36A18B, BSL36A18BX, BSL36B18, BSL36B18X, BSL36B18B, BSL36B18BX, BSL36C18
Battery Voltage (DC)
36 V
Motor Type
Brushless
Weight
4,2 kg
Tool Length
334 mm
Tool Width
91 mm
Tool Height
232 mm

Supplied With:

Side Handle
Depth Gauge
Stackable System Case 2
