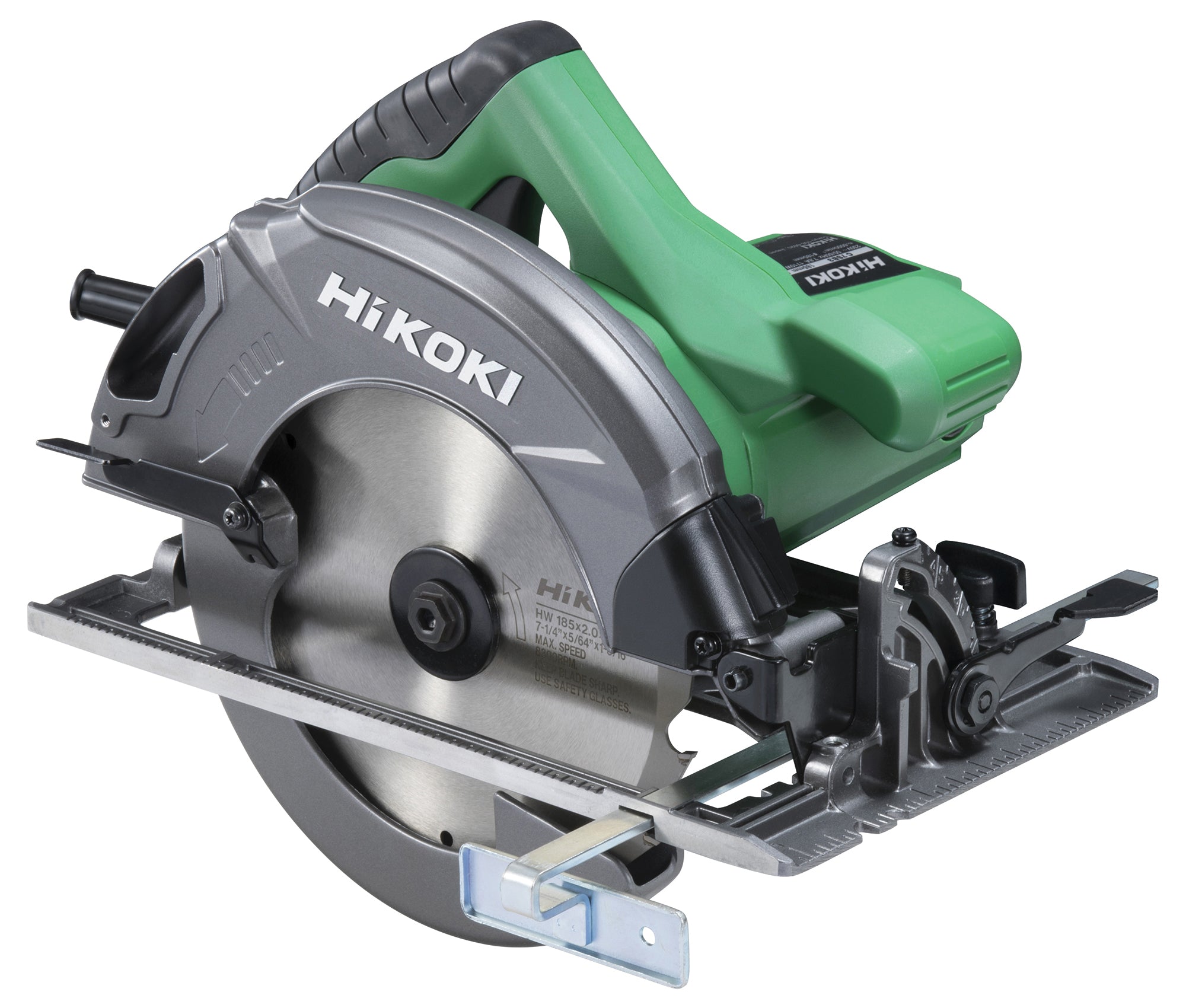

HiKOKI C7SB3J1Z 1710W, 185mm Circular Saw, 240V

Description

C7SB3J1Z C7SB3J1Z 1710W, 185mm Circular Saw, 240V

1,710 W 185 mm Circular Saw with a cuting depth of 62 mm

Features and Benefits:

• Robust aluminium base plate for easy gliding on rough construction sites
  Equipped spindle lock for fast and easy blade change
  Optimal saw blade visibility from both sides guarantees high-precision cuts
  Very compact and lightweight for maximum flexibility
  Integrated blower function for an optimal visability on the workpiece

Technical Specifications:

Blade Diameter
185 mm
Maximum Bevel Angle
55 °
Maximum Cutting Depth (0°)
62 mm
Maximum Cutting Depth (45°)
47,5 mm
No Load Speed from
6 000 /min
Joint Dust Collector
Yes
Material: Base
ADC
Material: Lower Guard
ADC
Material: Link
Steel
Blade Side
Right
Soft Grip
Yes
Blower
Yes
Mount Hole Diameter
30 mm
Switch Lock
Not Available
Material: Gear Cover
ADC
Input power
1 710 W
Power Frequency
50/60 Hz
Motor Type
With Brush
Power Cord Length
2 m
Power Cord Type
Vinyl
Phase Number of Motor
Single-Phase
Power Source
AC
Voltage
230 V
Weight
4,3 kg
Tool Length
304 mm
Tool Width
240 mm
Tool Height
249 mm
JAN/EAN code
4 966 376 292 158
Vertical Angulation Adjustment Function
Yes

Supplied With:

Tungsten carbide tipped (TCT) saw blade
Hex. Bar wrench
Guide
Wing-bolt
Lock spring
Blow Case
